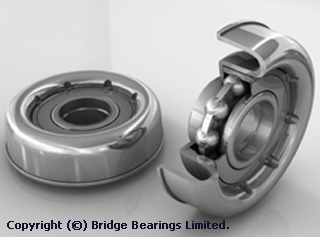

Precision Bearings - Steel Housed

Make an Enquiry

Overview

Steel housings offer maximum load carrying capacity and are suitable for arduous working environments.
All housings are designed to be a swaged fit with the flange registering against the tube. This process is usually carried out using a hydraulic press.
Special bore sizes are available on request.
Steel housings and inserts are supplied zinc plated as standard.

REFERENCE	A +/- 0.1mm	B +/- 0.2mm	C mm	D + 0.15 mm	LOAD RATING Kg	TUBE Ø x wall mm
6900ZZ + 25MP	23	9.20	2.50	8.3 Hex	25	1″ x 18 s.w.g.
6002ZZ + 35MP	34.7	15.5	3	8 Hex Ø10 11 Hex Ø12 Ø14 Ø15	50	1.1/2″ X 16 s.w.g.
6002ZZ + 44.5MP	44.5	13.6	6.5		100	2” x 10 s.w.g.
6002ZZ + 46MP	45.5	13.8	6.0		100	50 x 2
6002ZZ + 47MP	46.6	14	6.0		100	50 x 1.5
6002ZZ + 56MP	55.8	14.3	6.0		100	60 x 2
6202ZZ + 525MP	52.6	16.6	7.0	11 Hex Ø5/8″ 11/16 HexØ15		2.1/4” x 12 s.w.g.
6202ZZ + 57MP	57.3	16.8	7.5		150	2.1/2” x 10 s.w.g.
6004ZZ + 57MP	57.3	17.8	7.0		200	2.1/2″ x 10 s.w.g.
6204ZZ + 70MP	69.9	22.9	7.0	Ø5/8″ Ø3/4″11 Hex 9/16″ Hex Ø20	200	3” x 10 s.w.g.
6204ZZ + 74MP	74.2	22.5	7.5		200	80 x 3
6204ZZ + 76MP	76.3	23.1	6.0		200	80 x 2
6204ZZ + 83MP	83.1	23.1	6.5		200	88.9 x 2.9
